Semi Automatic Stretch and Aluminum Foil Wrapping Machine

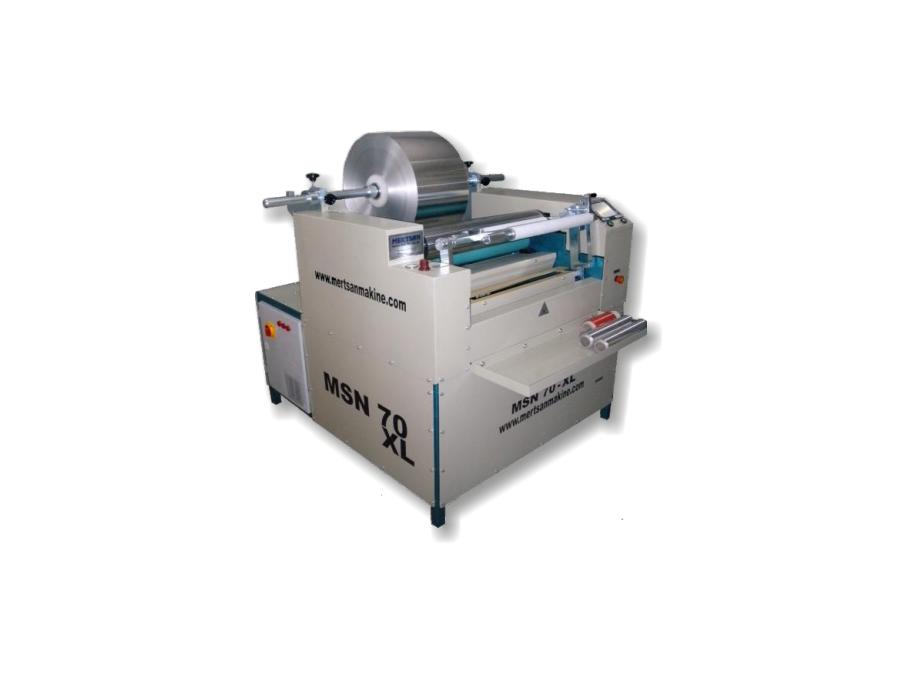

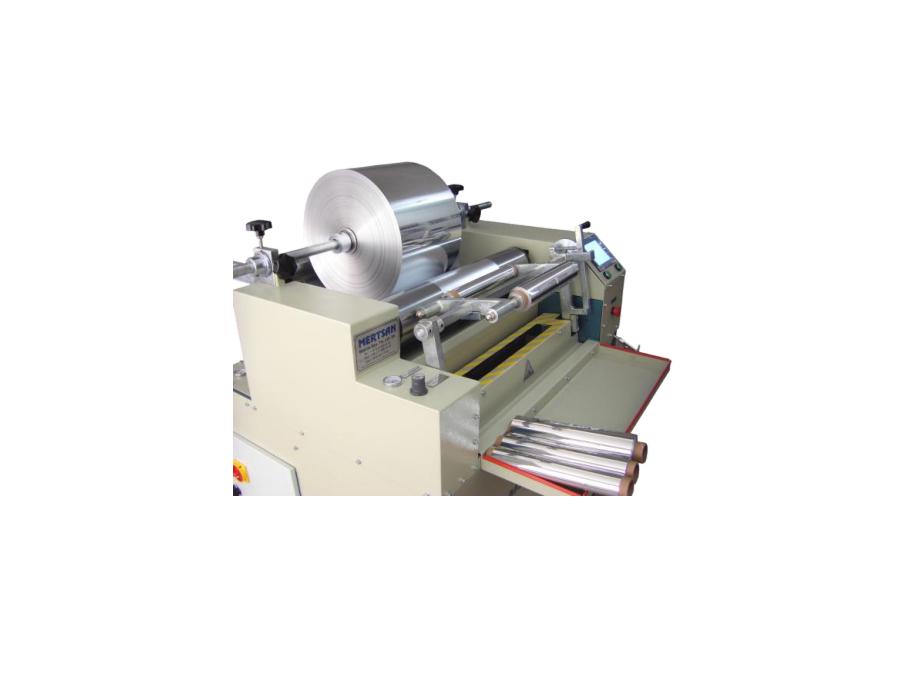

Mertsan MSN 70XL Stretch and Aluminum Foil Wrapping Machine
Product Features

The MSN 70XL model machine is used by our customers for precise metering of food stretch film, industrial stretch film, aluminum foil, and many other products.

This model is particularly in demand by customers who use it for wrapping jumbo rolls of aluminum foil.

The main reason for this is its ability to accommodate coils with an outer diameter of up to 80 cm.

• Special design for 80 cm diameter jumbo rolls.
• Food stretch film, pallet stretch film, and aluminum foil wrapping.
• Electrostatic painting and galvanized metal parts for rust resistance due to health requirements.
• High wrapping speed (500 m/min).
• Automatic or manual cutting options after the wrapping process.
• High-quality wrapping that remains consistent at high speeds.
• Adjustable pneumatic system support.
• Pneumatic pressure adjustment (for wrapping and opening band pressure).
• Smart control system with DSP microcontroller.
• Touchscreen LCD control panel.
• Electronic regulator system.
• Easy and user-friendly design.
• Automatic calibration system with DSP microcontroller.

Mertsan MSN 70XL Technical Specifications
Unwinding Unit Specifications | Winding Unit Specifications

• Max Coil Width: 50 cm | Max Coil Width: 55 cm
• Max Coil Diameter: 80 cm | Min Core Diameter: 28 mm
• Max Coil Weight: 280 kg | Max Core Diameter: 76 mm
• Standard Core Diameter: 76 - 150 mm | Max Coil Diameter: 20 cm

Mertsan MSN 70XL Technical Data

• Physical Dimensions: 100 x 100 x 70 cm
• Operating Voltage: 380 V, 50/60 Hz (+/- 10%)
• Motor Power: 4 kW 3P Asynchronous Motor
• Pneumatic Air Pressure: 6 Atm
• Wrapping Speed: 500 m/min
• Control Type: Semi-Automatic - Computerized Control System
