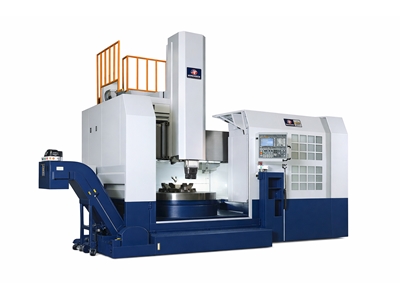

Ø 850 mm Heavy Duty Vertical Lathe Machine

6DCM

TURNING CAPACITY Max. Turning Diameter mm Ø 850 Max. Turning Length mm Ø 760 Distance from Faceplate to Tool 925 mm Max. Turning Height mm 660 Max. Workpiece Weight mm 1500SPINDLE Chuck Diameter mm 533 Spindle Speed 5-700 rpm Live Tool Speed 50-2250 rpm Gearbox 2 steps Spindle Nose A2-11 ATC Number of Positions 12 Tool Size 25,32 mm X Section 220x220 mmAXES Rapid Feeds m/min 10 X-axis Stroke mm -100+650 mm Z-axis Stroke mm 600 mm Cutting Speed mm/rev 0.001-500 mm/rev Column Movement FixedMOTOR Spindle Motor (50% ED) kw 18.5/22 kw X, Z-axis Motor Power kw 4.0/4.0 kw C-axis Motor Power kw 11/15 kw Power Requirement kva 40 kvaMACHINE SIZE Width x Depth mm 2700X2250 mm Height mm 3880 mm Machine Weight kg 12500 kg

Equipped with Fanuc OiTC and Standard Accessories.
