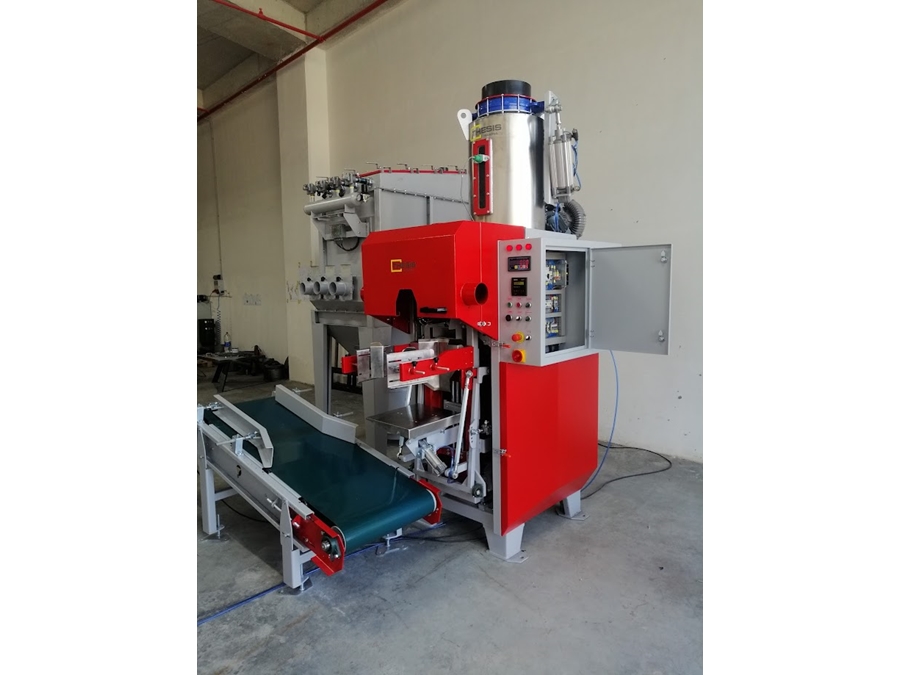

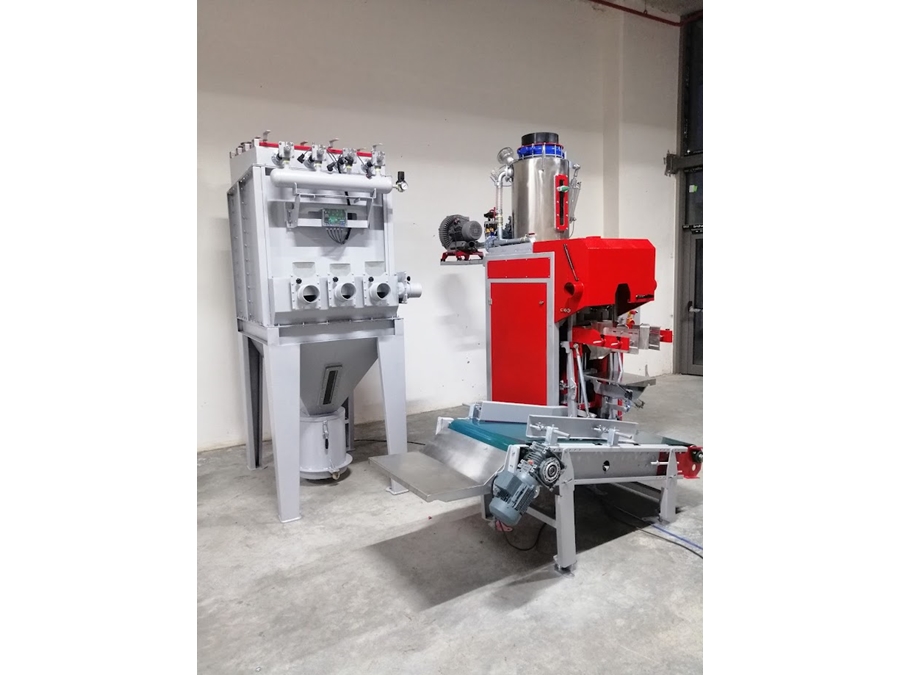

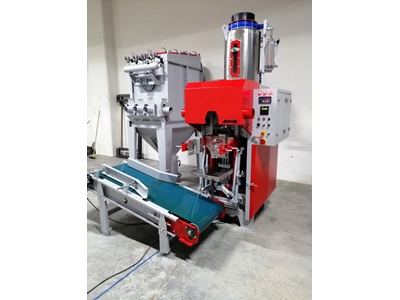

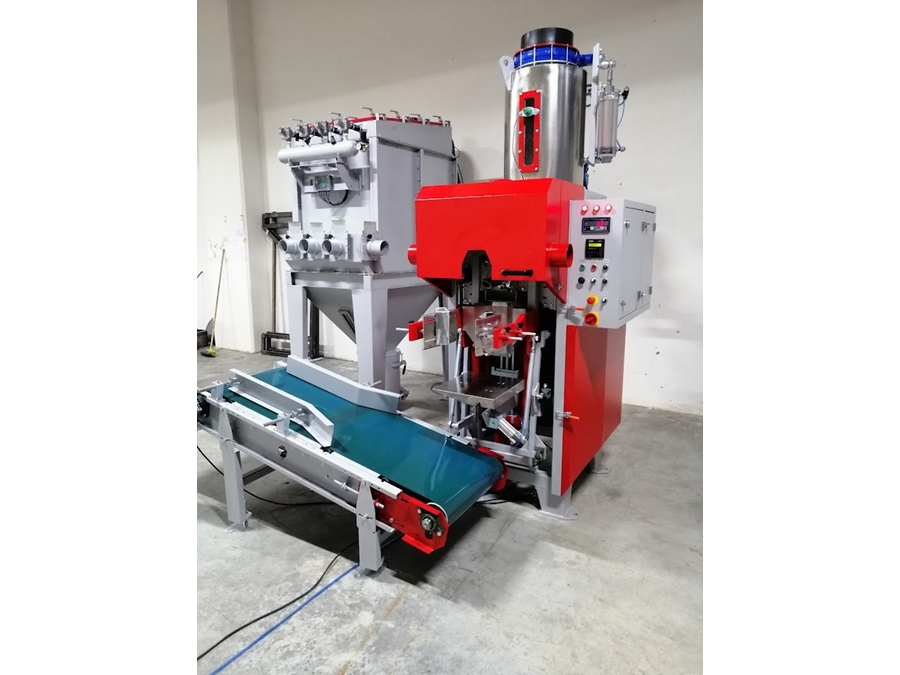

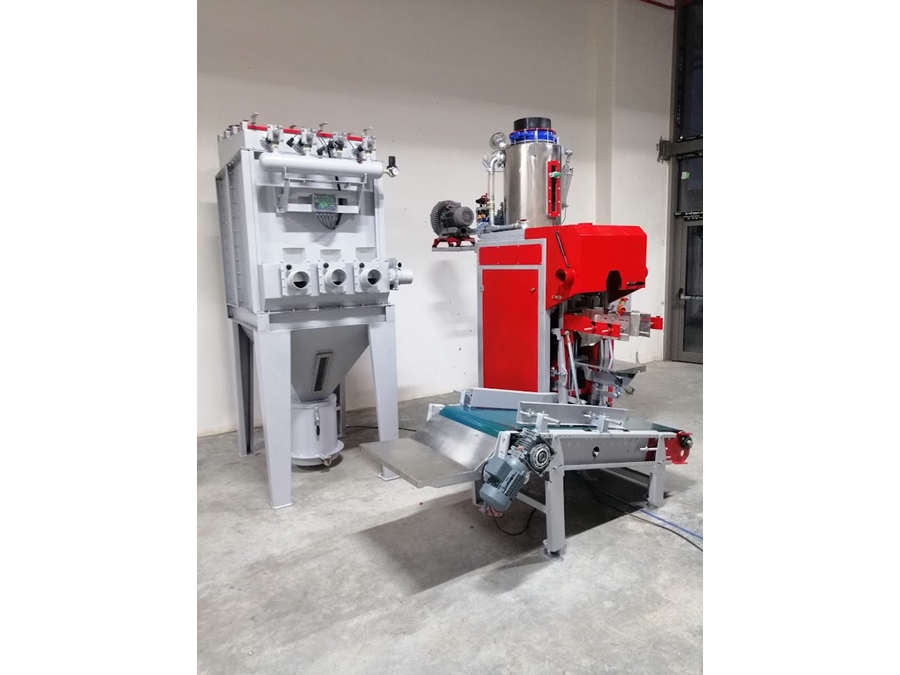

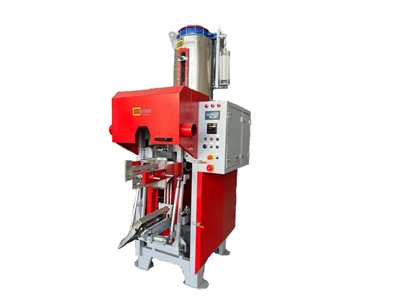

250-300 Bags/Hour Air System Valve Bag Powder Granule Filling Machine

250-300 Bags/Hour Pneumatic System Ventilated Bag Powder Granule Filling Machine

This filling machine is designed for bagging powders, small particle products, and mixtures. It is used for bagging cement-based products, construction materials, chemical products, and similar materials.

The machine operates with high precision and can fill materials with a bag capacity between 5-50 kg. It can also work efficiently with a wide range of materials, from fine powders to granular products.

Key Features and Advantages:

• Various Nozzle Options: The machine is available in single, double, and triple nozzle models. Additionally, it offers larger capacity options with a rotary filling system of 4 nozzles or more. This rotary system can be expanded up to 10 nozzles.

• Precise Filling: The machine can fill various materials, from low-flowing, fragile, and fine powders to granular products, with high precision. This feature increases flexibility and efficiency based on the material type.

• Ideal for Low-Density and Hard-to-Flow Products: This system is an excellent solution for materials with low density and challenging flow characteristics.

• Heavy-Duty Chassis: The machine has a heavy-duty chassis designed to withstand harsh working conditions, ensuring long-lasting and robust performance.

• Dual-Speed Automatic Weighing System: The material weighing is done both quickly and precisely, minimizing operator errors and ensuring fast filling operations.

• Automatic Nozzle Cleaning System: After the filling process, the nozzle cleaning is performed automatically, ensuring hygiene during operations and making maintenance easier.

• Adjustable Bag Stand: The bag stand is adjustable, allowing easy attachment of bags of different sizes.

• 150-Liter Stock Hopper: Provides continuous operation with high capacity. The stock hopper is designed to maintain a steady flow of material into the machine.

• Easy Cleaning and Maintenance: The machine is equipped with fully openable side covers, allowing for easy maintenance and cleaning.

Working Principle:

The machine receives material through the top feeding valve. When the valve opens, the material is fed inside, and the valve closes, storing the material. Once the bag is attached to the filling nozzle, the system starts automatically, and the material is filled into the bag with the air produced by the blower. The air escaping from the bag's pores ensures the filling process is smooth and fast.

Optional Features:

• Ultrasonic Bag Neck Sealing: An optional ultrasonic system is available for sealing the bag neck securely and firmly.

• Vertical Discharge Mechanism: An optional vertical discharge mechanism ensures that the bag is properly dropped.

Technical Specifications:

• Capacity: 250-300 bags/hour, for 25 kg cement-based products.
• Bag Type: Kraft, PP, PE, and ventilated bags.
• Bag Capacity: 5-50 kg.

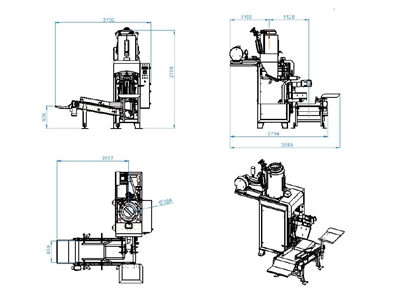

• Bag Dimensions:
  • Min. 350x500 mm
  • Max. 500x650 mm.

This filling machine provides an excellent solution for bagging powders and granular products under demanding conditions. It delivers high performance in terms of both efficiency and durability, helping to speed up production processes.
