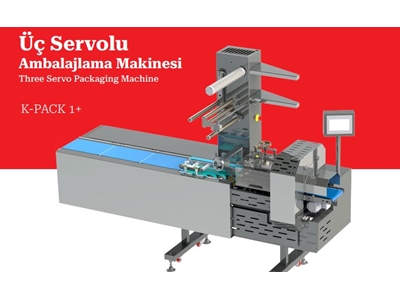

180 Packages/Minute Three Servo Bread Packaging Machine
It is designed for packaging various kinds of breads like pita bread, sliced bread, sandwiching bread,loaf etc. This machine working with PLC system, formulti-language setteing and adding function. It can also control whole packing process like bag forming, metering, filling, sealing, counting, cutting and batch number printing. It is comfy to set parameters, It works in high speed with high efficiency. It Adopt photoelectric tracing technology and digital input to ensure accurate sealing & cutting position.
General Features:
- The machine with a compact design is ideal for large production capacity.
- All parts in contact with the product are made of AISI 304 grade stainless steel. Suitable for food production.
- Servo-controlled film pulling system.
- Product feeding control can be easily performed with a servo-controlled feeding conveyor.
- The photocell system prevents packaging waste in printed packages.
- Products of different sizes can be easily packaged.
- The touch screen with internet connectivity allows remote troubleshooting and support for possible malfunctions.
- This system provides an advantage with a minimum equipment level and simple use.
- Opening and closing pneumatic shaft control with a touch screen.
Technical Specifications:
Feature | Value |
---|---|
Packaging Capacity | 180 Packages/Minute |
OPP - Cellophane Roll Width | 500 mm |
OPP - Cellophane Roll Diameter | 350 mm |
Package Length | 100 - 250 mm |
Package Height | 60 mm |
Package Width | 20 - 140 mm |
Number of Servo Motors | 3 Units |
Machine Dimensions | 1870 x 3780 x 870 mm |
Total Power | 8.5 Kw |
Power Supply Voltage | 380 Volt AC |
Air Consumption | 6 Bar |
Servo Motor Power | 0.75 kw |
AC Motor Power | 0.37 Kw |
