8000 M3/Hour 48 Bags Jet Pulse Ventilation Filter With Touch Up Cabin

8000 M3/Hour 48 Bags Jet Pulse Ventilation Filter With Touch Up Cabin

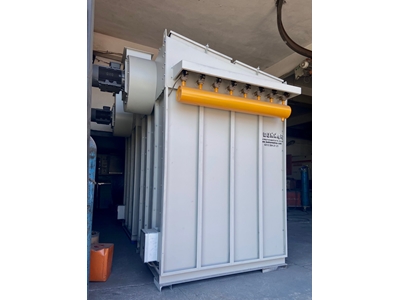

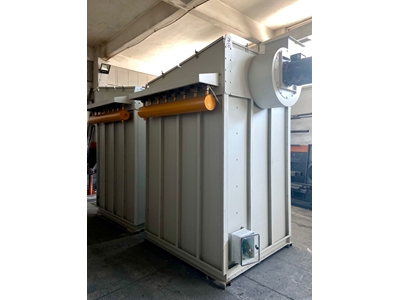

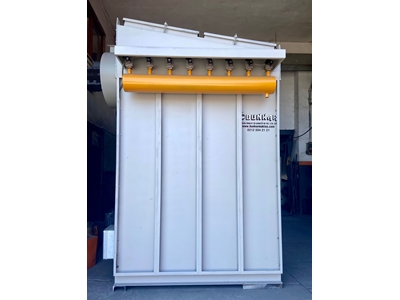

Albero 8000 is an advanced 48-Bag Jet Pulse Ventilation Filter equipped with a Touch-Up Cabin, designed to meet the dust and particulate filtration needs of industrial environments. With a filtration capacity of 8,000 m³/hour, this system is ideal for medium to large-scale industries such as metalworking, wood processing, chemical production, and mining, where efficient air filtration and dust control are paramount for worker safety and environmental compliance.

The process begins when dust-laden air enters the filter system via a high-pressure suction pipe. Upon entering the bunker, the airflow is carefully managed using a reflector, which directs the flow downward. As the speed of the air decreases, the heavier particles drop to the bottom of the bunker due to their weight, preventing them from entering the filter bags. Meanwhile, the lighter dust and dirty air stay suspended on the exterior surfaces of the filter bags, where the primary filtration process occurs.

One of the key features of the Albero 8000 is its automatic cleaning system, which ensures that the filter bags remain free from dust buildup, maintaining peak filtration performance. This system uses Pulse Valves that are controlled by an electronic timer. When activated, the valves release burst of compressed air at 6-7 bar pressure to clean the bags by dislodging the collected dust. The cleaning process is efficient, preventing the bags from becoming clogged and ensuring uninterrupted operation. The timing of these cleaning pulses can be adjusted to suit the specific needs of the application, ensuring optimal performance without unnecessary wear.

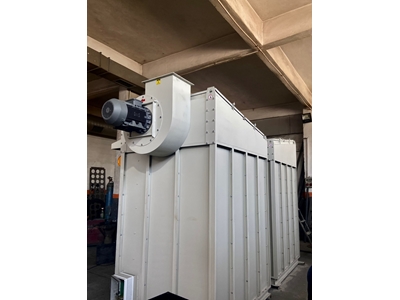

After the air passes through the filter bags, the cleaned air is sucked in and transferred outside of the facility by a fan system. The exhausted air is purified and ready to be expelled without contamination, meeting stringent environmental regulations for air quality and emission control.

The high-pressure system is vital to the efficiency of this filter. The force applied ensures that the dust and other particles collected in the bags are effectively transferred into the bunker at the bottom of the unit. This makes it possible to efficiently separate the usable materials from the waste. The usable materials can be recovered, reused, or processed further, while the waste is disposed of, contributing to a sustainable industrial process.

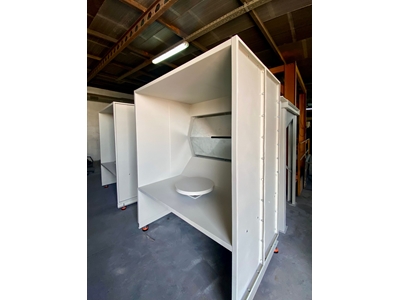

In addition to the high-efficiency filtration and automatic cleaning system, the Albero 8000 features a Touch-Up Cabin, offering an added layer of convenience for maintenance and service. The cabin is designed for easy access to the filter bags and other components, allowing operators to perform inspections, maintenance, and bag replacements without difficulty. This feature significantly reduces downtime and ensures that the system operates smoothly over extended periods, improving overall productivity.

The filter bags in the Albero 8000 are designed for long-term durability and are capable of handling large amounts of dust without losing their effectiveness. They are built to withstand high-pressure cleaning cycles and ensure a consistent and reliable filtration process, even under challenging industrial conditions.

In summary, the Albero 8000 48-Bag Jet Pulse Ventilation Filter with Touch-Up Cabin provides an effective, high-capacity solution for managing dust and particulate matter in industrial environments. Its efficient filtration system, combined with the automated pulse cleaning technology, ensures consistent and reliable air purification, helping industries meet environmental standards and improve workplace safety. The Touch-Up Cabin makes maintenance easy and convenient, reducing operational downtime and increasing the longevity of the system. Designed for high-performance and low-maintenance, the Albero 8000 is an excellent choice for businesses seeking an efficient and cost-effective dust collection solution.
