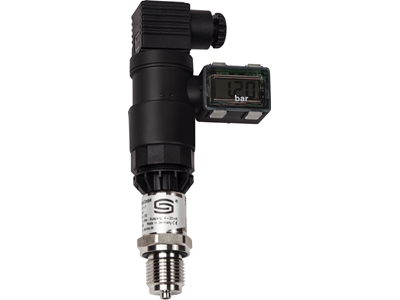

S+S Regeltechnik SHD-SD SHD-SD-x 6 Bar LCD Pressure Measuring Transducers
The pressure sensor PREMASGARD SHD-SD is used for measuring relative pressures (min. 0...6 bar / max. 0...16 bar) in gaseous and liquid media. Not suitable for ammonia and freon! The pressure sensor PREMASGARD SHD is used for measuring relative pressures (min. 0...1 bar / max. 0...40 bar) in gaseous and liquid media. The pressure measuring cell is welded to the pressure sensors without a gasket. The pressure measuring transducer converts the measurand into a standard signal of 0 - 10 V or 4...20 mA. Process connection is G ½ ". This pressure transmitter is used in hydraulics, pneumatics, process technology, in mechanical and plant engineering.
Technical Data:
Power Supply:
- Voltage: 24 V AC/DC for output 0 -10 V
- 7 - 33 V DC for output 4...20 mA
Measuring Ranges:
- See table (other ranges available upon request)
Output:
- 0 -10 V, 3-wire, (working resistance > 10 kOhm) or
- 4... 20 mA, 2-wire, (working resistance < (UB (V) -7 V) ⁄ 0,02 A; RL depending on working resistance)
Electrical Connection:
- 0.25 - 1.5 mm², via plug-in connector DIN EN[ PHONE HIDDEN ]-A (included in the scope of delivery)
Pressure Connection:
- G ½ " sealing at the back
- Type of Pressure: Relative
Medium:
- Liquid and gaseous
Response Time:
- 2 ms (1 ms typical)
Characteristic Line:
- ± 0.3 %
Mounting:
- Directly on pressure line
Housing:
- Stainless steel V2A (1.4305)
Connecting Head:
- Plastic, approx. 98 x 50 x 34 mm
SHD-SD Measuring Principle:
- Ceramic measuring cell
Temperature of Medium:
- –15...+ 125 °C
Medium Contacting Parts:
- Stainless steel V2A (1.4305); measuring element ceramic Al203 (96%); sealing material FPM (Viton)
Load Changes:
- < 100 Hz
Overload Range ⁄ < 4 bar:
- 3 x FS
Bursting Pressure:
4 bar: 2.5 x FS
SHD Measuring Principle:
- Steel measuring cell
Temperature of Medium:
- – 40...+135 °C
Medium Contacting Parts:
- Stainless steel V2A (1.4305)
Overload Range:
- < 6 bar: 5 x of final value
- 6 bar: 3 x of final value (max. 1500 bar)
Bursting Pressure:
- < 6 bar: 10 x of final value
- 6 bar: 6 x of final value (max. 2500 bar)
Protection Class:
- III (according to EN 60 730)
Protection Type:
- IP 65 (according to EN 60 529)
Standards:
- CE conformity, electromagnetic compatibility according to EN 61 326, EMC directive 2014 ⁄ 30 ⁄ EU
Tests:
- Drinking water approval according to NSF/ANSI 61/372, UL-certified according to ANSI/UL 61010-1
Optional:

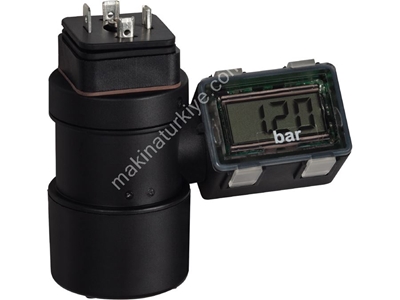

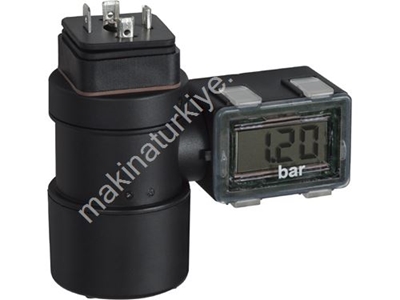

- With display module, made of plastic, polyamide material, black colour, LCD display rotatable and tiltable, for displaying the pressure (in bar, other units available upon request)
