3-15 mm / Minute Wood Surface Sanding Machine
İlan No: | #00206485 |
Kategori: | Ahşap Yüzey Zımpara Makinası |
Marka: | Famak |
Model Tipi: | 1350-R.KP. |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | Türkiye |
Teslim Durumu: | Stokta Var |
Konum: | Yenidoğan Mh / Gürsu / Bursa |
Kısa Detay: | 1 Yıl Garantili |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Famak Zımpara Makina San. Tic. Ltd. Şti.

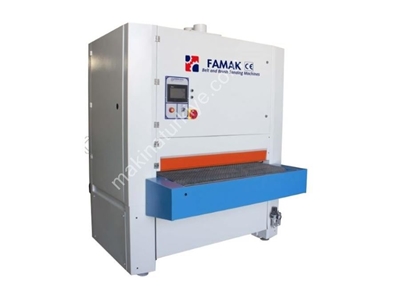

Famak 1350-R.KP.
3-15 mm / Minute Wood Surface Sanding Machine
- Capacity to process 1350mm width and 3 – 120mm thickness,

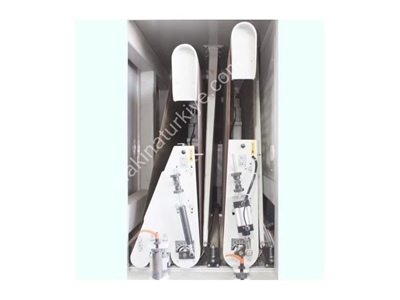

- Desired surface quality in one go with its 2-unit structure

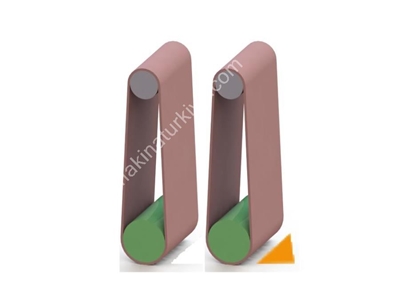

- Front unit calibrated, rear unit piano printed combi,
- It does not cause bottoming and peeling on products coated with piano prints.
- Possibility to use caliber or piano with the KP unit
- 3 – 15 m/min. adjustable feed rate,
- wear resistant conveyor belt,
- With 2620mm long sanding length, product sanding up to 1000 meters,
Optional equipment:
- Ø180mm Steel drum,
- Rubber coated drum D=180 mm 30, 45, 60, 90 Sh.
- Vacuum suction table system (required for sanding materials thinner than 3mm.)
- Brush cleaning system at the exit
Model |
1350 – R.P. |
|
Machine name |
1350 mm Roll and Piano Printed Combi Unit Caliber Sanding Machine |
|
Machine working width |
(mm) |
0 – 1350 |
Material processing thickness |
(mm) |
3 – 120 |
Sandpaper sizes |
(mm) |
(2x) 1350*2620 |
Conveyor system features |
speed adjustable system, wear resistant conveyor belt, *table movable |
|
1. Unit features |
||
Unit type |
(mm) |
Roll Unit |
Front drum diameter and feature |
(mm) |
Ø180, rubber coated drum, Rubber hardness 65-70 sh. |
Motor power |
(kW) |
15 |
Sanding cutting speed |
(m/s) |
18 |
engine braking system |
Was |
|
2. Unit features |
||
Unit type |
(mm) |
Piano Printed Combi Unit |
Number of piano prints |
22 |
|
Front drum diameter and feature |
(mm) |
Ø150, rubber coated front drum, Rubber hardness 65-70 shor |
Motor power |
(kW) |
15 |
Sanding cutting speed |
(m/s) |
18 |
engine braking system |
Was |
|
Electric panel |
Siemens / Mitsubishi |
|
Machine color |
Ral 7 |
|
Oscillation in units |
Was |
|
Cover safety switch |
Was |
|
engine protection unit |
Was |
*The table is movable: The thickness adjustment is made by moving the conveyor belt up / down according to the material to be processed in the machine.
*Body moving: While the machine conveyor is fixed in this system, the thickness adjustments are provided by the body movement. It is offered optionally.
**3 - 120 : Vacuum must be added to the conveyor system for parts with thicknesses less than 3 mm. It is offered optionally.
