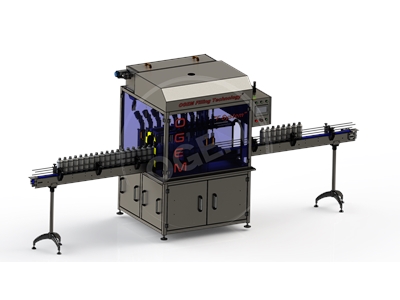

2000-2500 Units/Hour Automatic Packaging Filling Machine

Technical Specifications
✓ The filling machine is fully automatic.
✓ It operates with a volumetric system. Upon request, it can be equipped with 4/6/8/10 bottom/top filling heads.
Weight range of the machine: Customizable. (Weight range: Between 100 ml and 1,000 ml / 1,000 ml and 5,000 ml)
✓ The filling machine operates in a temperature range of 5°C to 100°C.
Machine accuracy: At constant air pressure (8 atm – 750 lt/min), constant temperature, and homogenous products, the general weight accuracy is ± 0.05%.
Machine hopper: Has a capacity of approximately 150-200 liters and is made of stainless steel.
✓ The hopper features automatic level control. When the hopper is full, the product inlet valve closes automatically, or a signal is sent to the pump feeding the machine to stop or start. Level control will be AYVAZ brand C4 type float.
Filling nozzles: Equipped with a bottom filling system, it can have 4/6/8/10 nozzles based on demand.
✓ The nozzles can be easily adjusted to different packaging sizes. They have a tip closing mechanism, preventing dripping and contamination of the bottles.
Weight adjustment of the machine: Adjusting the weight is very easy through the PLC screen.
✓ The machine also features an extra adjustment mechanism to balance differences between filling nozzles.
Materials used in the machine: All parts that come into contact with the product are made of 316 stainless steel. Other external surfaces, protective covers, and legs are made of 304 stainless steel. Some internal parts and mechanisms are made of aluminum.
Filling capacity of the machine: At constant air pressure (8 atm – 750 lt/min for 1,000 ml), the average capacity is 2000 – 2500 units/hour, depending on the type of packaging.
✓ (Capacity is estimated and may vary based on viscosity, not guaranteed.)
✓ The machine uses a total of 5 meters of conveyor belt. The chassis is made of stainless steel, and the slat belts for pallets are made of polypropylene/stainless steel. The speed of the conveyor belt can be adjusted via the control panel.
✓ To operate, the machine requires 8 atm of air (a compressor) and 380 volts of electricity.

OGEM (4/6/8/10)《F System》

Applications

Food and Beverage:
Olive Oil, Sunflower Oil, Boza, Turnip Juice, Vinegar, Liquid Sauces, Tomato Paste, Appetizers, Sauce, Buttermilk, Yogurt, Jam, Honey, Marmalade, Pomegranate Syrup, Fruit Juice, Kefir, Buttermilk, Lemonade, etc.

Chemicals and Cosmetics:
Liquid Detergent, Liquid Hand Soap, Liquid Dishwashing Detergent, Gel Detergent, Fabric Softener, Cologne, Bleach, Disinfectant, Shampoo, Liquid Fertilizer, Castile Soap, Shampoo, Lotion, Cream, Gel, Medical Liquids, etc.

Lubricants:
Motor Oil, Fuel Additives, Antifreeze, All Lubricants, etc.

Paint:
Paint, Solvent, Thinner, Solvent-based Paint, etc.
