20-380 mm Taper Lock System
İlan No: | #00204971 |
Kategori: | Konik Kilit Sistemi |
Marka: | UTL |
Model Tipi: | UTL 351F |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | Türkiye |
Teslim Durumu: | Stokta Var |
Konum: | Başakşehir Mah. / Başakşehir / İstanbul |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
UTL Konik Kilit Sistemleri
20-380 mm Taper Lock Systems

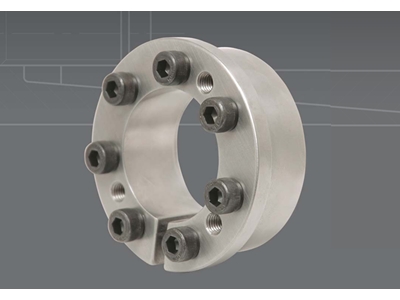

The UTL 351F series offers a locking assembly with a single taper design, available in sizes ranging from 20 mm to 380 mm. This design provides excellent concentricity and self-centering, making it ideal for high torque applications. The flange design prevents axial movement during installation, ensuring a reliable and stable connection.
Technical Specifications and Advantages:
- Wide Size Range: Available in various sizes from 20 mm to 380 mm, offering solutions for different needs.
- High Torque Capacity: Capable of reliably transmitting high torque values, making it perfect for heavy-duty applications.
- Single Taper Design: Offers excellent concentricity and self-centering, ensuring proper alignment and smooth operation of equipment.
- Flange Design: Prevents axial movement during installation, providing a reliable and stable connection.
- Durability and Reliability: Constructed from high-quality materials, ensuring long-lasting performance and reliability.
- Applications: Ideal for high torque industrial applications, mechanical engineering, and other demanding conditions.
The UTL 351F series is designed to provide reliable and efficient performance in various industrial applications. With its high torque capacity, single taper design, and flanged structure, these taper lock systems guarantee optimal operation in mechanical engineering and other industrial sectors.
Locking assembly with single taper design. Provides good concentricity and self centering It is recommended for high torques. The flange design prevents axial movement during installation.
20 - 380 mm Taper Lock Systems Technical Specification:
Sipariş Kodu / Code | Ölçüler / Dimensions | Bağlantı elemanları / Tightening screws | Başarımlar / Performances | Ağırlık / Weight kg | |||||||||||
d | D | D1 | L3 | L2 | L1 | L | DIN 912 | Ma | Mt | Fass | Ps | Ph | |||
mm | mm | mm | mm | mm | mm | mm | Ad. | 12.9 TİP | Nm | Nm | kN | N/mm² | N/mm² | ||
UTL 351F - 20 | 20 | 47 | 53 | 26 | 30 | 42 | 48 | 6 | M6 | 17 | 330 | 34 | 175 | 75 | 0,5 |
UTL 351F - 22 | 22 | 47 | 53 | 26 | 30 | 42 | 48 | 6 | M6 | 17 | 370 | 34 | 160 | 75 | 0,5 |
UTL 351F - 24 | 24 | 50 | 56 | 26 | 31 | 43 | 49 | 6 | M6 | 17 | 400 | 34 | 145 | 70 | 0,5 |
UTL 351F - 25 | 25 | 50 | 56 | 26 | 31 | 43 | 49 | 6 | M6 | 17 | 420 | 34 | 140 | 70 | 0,5 |
UTL 351F - 28 | 28 | 55 | 61 | 26 | 31 | 43 | 49 | 6 | M6 | 17 | 470 | 34 | 125 | 65 | 0,6 |
UTL 351F - 30 | 30 | 55 | 61 | 26 | 31 | 43 | 49 | 6 | M6 | 17 | 510 | 34 | 115 | 65 | 0,6 |
UTL 351F - 32 | 32 | 60 | 66 | 26 | 31 | 43 | 49 | 8 | M6 | 17 | 720 | 45 | 145 | 80 | 0,7 |
UTL 351F - 35 | 35 | 60 | 66 | 26 | 31 | 43 | 49 | 8 | M6 | 17 | 790 | 45 | 135 | 80 | 0,6 |
UTL 351F - 38 | 38 | 65 | 71 | 26 | 31 | 43 | 49 | 8 | M6 | 17 | 860 | 45 | 125 | 70 | 0,8 |
UTL 351F - 40 | 40 | 65 | 71 | 26 | 31 | 43 | 49 | 8 | M6 | 17 | 900 | 45 | 120 | 70 | 0,6 |
UTL 351F - 42 | 42 | 75 | 81 | 30 | 36 | 51 | 59 | 6 | M8 | 41 | 1.320 | 63 | 135 | 75 | 1,2 |
UTL 351F - 45 | 45 | 75 | 81 | 30 | 36 | 51 | 59 | 6 | M8 | 41 | 1.410 | 63 | 125 | 75 | 1,1 |
UTL 351F - 48 | 48 | 80 | 86 | 30 | 36 | 51 | 59 | 6 | M8 | 41 | 1.510 | 63 | 120 | 70 | 1,3 |
UTL 351F - 50 | 50 | 80 | 86 | 30 | 36 | 51 | 59 | 6 | M8 | 41 | 1.570 | 63 | 110 | 70 | 1,1 |
UTL 351F - 55 | 55 | 85 | 91 | 30 | 36 | 51 | 59 | 8 | M8 | 41 | 2.310 | 84 | 135 | 90 | 1,2 |
UTL 351F - 60 | 60 | 90 | 96 | 30 | 36 | 51 | 59 | 8 | M8 | 41 | 2.520 | 84 | 124 | 85 | 1,3 |
UTL 351F - 65 | 65 | 95 | 102 | 30 | 36 | 51 | 59 | 8 | M8 | 41 | 2.730 | 84 | 115 | 80 | 1,4 |
UTL 351F - 70 | 70 | 110 | 117 | 40 | 46 | 59 | 69 | 8 | M10 | 83 | 4.650 | 133 | 125 | 80 | 2,5 |
UTL 351F - 75 | 75 | 115 | 122 | 40 | 46 | 59 | 69 | 8 | M10 | 83 | 5.000 | 133 | 120 | 80 | 2,6 |
UTL 351F - 80 | 80 | 120 | 127 | 40 | 46 | 59 | 69 | 8 | M10 | 83 | 5.330 | 133 | 110 | 75 | 2,8 |
UTL 351F - 85 | 85 | 125 | 132 | 40 | 46 | 59 | 69 | 10 | M10 | 83 | 7.080 | 167 | 130 | 90 | 2,8 |
UTL 351F - 90 | 90 | 130 | 137 | 40 | 46 | 59 | 69 | 10 | M10 | 83 | 7.500 | 167 | 125 | 85 | 3 |
UTL 351F - 95 | 95 | 135 | 142 | 40 | 46 | 59 | 69 | 10 | M10 | 83 | 7.900 | 167 | 115 | 85 | 3 |
UTL 351F - 100 | 100 | 145 | 153 | 46 | 52 | 70 | 82 | 8 | M12 | 145 | 9.700 | 194 | 115 | 80 | 5,5 |
UTL 351F - 110 | 110 | 155 | 163 | 46 | 52 | 70 | 82 | 8 | M12 | 145 | 10.650 | 194 | 100 | 75 | 4,8 |
UTL 351F - 120 | 120 | 165 | 173 | 46 | 52 | 70 | 82 | 10 | M12 | 145 | 14.550 | 243 | 120 | 85 | 5,5 |
UTL 351F - 130 | 130 | 180 | 188 | 46 | 52 | 70 | 82 | 12 | M12 | 145 | 18.950 | 291 | 130 | 95 | 6 |
UTL 351F - 140 | 140 | 190 | 199 | 51 | 59 | 82 | 86 | 8 | M14 | 230 | 18.650 | 267 | 100 | 75 | 7,5 |
UTL 351F - 150 | 150 | 200 | 209 | 51 | 59 | 82 | 86 | 10 | M14 | 230 | 25.000 | 333 | 120 | 90 | 7,7 |
UTL 351F - 160 | 160 | 210 | 219 | 51 | 59 | 82 | 86 | 10 | M14 | 230 | 26.650 | 333 | 110 | 85 | 8 |
UTL 351F - 170 | 170 | 225 | 234 | 51 | 59 | 82 | 86 | 12 | M14 | 230 | 34.000 | 400 | 125 | 95 | 9,8 |
UTL 351F - 180 | 180 | 235 | 244 | 51 | 59 | 82 | 86 | 12 | M14 | 230 | 36.000 | 400 | 120 | 90 | 9,8 |
UTL 351F - 190 | 190 | 250 | 259 | 51 | 59 | 82 | 86 | 15 | M14 | 230 | 47.500 | 500 | 160 | 120 | 10 |
UTL 351F - 200 | 200 | 260 | 269 | 51 | 59 | 82 | 86 | 16 | M14 | 230 | 50.000 | 500 | 150 | 115 | 10,5 |
UTL 351F - 220 | 220 | 285 | 294 | 64 | 72 | 98 | 102 | 12 | M16 | 355 | 65.100 | 592 | 111 | 86 | 14,8 |
UTL 351F - 240 | 240 | 305 | 314 | 64 | 72 | 98 | 102 | 16 | M16 | 355 | 88.700 | 740 | 128 | 101 | 15,7 |
UTL 351F - 260 | 260 | 325 | 334 | 64 | 72 | 98 | 102 | 18 | M16 | 355 | 115.400 | 887 | 141 | 113 | 17 |
UTL 351F - 280 | 280 | 355 | 364 | 75 | 83 | 121 | 127 | 16 | M18 | 485 | 132.900 | 949 | 120 | 95 | 36 |
UTL 351F - 300 | 300 | 375 | 384 | 75 | 83 | 121 | 127 | 15 | M14 | 230 | 160.200 | 1.068 | 126 | 101 | 37 |
UTL 351F - 320 | 320 | 405 | 414 | 90 | 98 | 140 | 148 | 26 | M16 | 355 | 220.800 | 1.380 | 127 | 100 | 38,5 |
UTL 351F - 340 | 340 | 425 | 434 | 90 | 98 | 140 | 148 | 30 | M16 | 355 | 273.700 | 1.610 | 140 | 112 | 40,4 |
UTL 351F - 360 | 360 | 455 | 464 | 110 | 118 | 164 | 174 | 34 | M16 | 355 | 307.000 | 1.706 | 114 | 90 | 56,7 |
UTL 351F - 380 | 380 | 475 | 484 | 110 | 118 | 164 | 174 | 32 | M18 | 485 | 378.100 | 1.990 | 126 | 101 | 58,8 |
