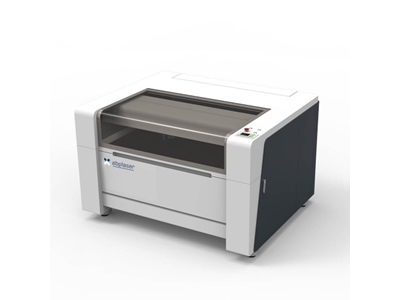

150 W Cnc Co2 Laser Engraving And Cutting Machine

ABP Laser ABP-150

150 W Cnc Co2 Laser Engraving And Cutting Machine

• High precision and quality Co2 Laser cutting and engraving Machine

• 1. Drive system with high precision linear guide and sliding block, high precision, high wear resistance, high speed arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability

• 2. Red light accurate positioning, easy and fast in finding the carving and cutting position.

• 3. Three-mirror and one focal length lens path system to offer outstanding engraving and cutting effect.

• 4. Equipped with manual modulation focused laser head, precise and accurate, the machine alternative to engraving and cutting to ensure the product quality and the material of the plate

• It can adjust the focusing position according to its features and thickness. Or there is an auto focus option.

• Why are our products better than other similar products?

• FDA Compliant, CE Certification, ISO9001 Quality Certificate.

• Cutting separation up to 256 colors.

• 2 years free warranty

• USB Interface, U Flash Disk Supported, The machine will read the files from the memory stick, you can work without a PC.

• Smooth and Precise Engraving and Cutting.

• Manual or Auto up down table.

• Red Dot Pointer. Provides a visible way to determine engraving location.

• stepper motor

• Red dot position system

• Taiwan square rail & Taiwan belt

• Japan Omron electronic component

• Ruida contral system

• Auto focus device (External)

• WIFI wireless control

• Convenient Wireless control High efficiency One PC can control multiple sets machines

• laser tube

• 1. When the working current is 4 mA and the tube is in the pre-ionization state, the laser can be used for high-frequency impulse engraving.

• 2. The product is featured to work under large power rate and long service time, suitable for blade molding machine and thick acrylic sheet cutting.

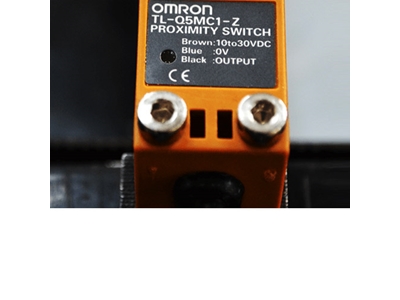

• Japan Omron Electronic components

• hiwin

• It has equal load rates in radial, reverse radial, lateral directions and self-aligning to absorb installation error.

• Therefore, HG series linear guide is characterized by high speed, high accuracy and smooth linear motion, as well as long service life.

• stepper motor

• Low Noise

• Low Vibration

• Trouble-Free Operation

• High Torque

• High Acceleration Ability

• Better Sensitivity

• Better Acceleration Performance

• 3 Phase NEMA 42 stepper Motor

• MACHINE PARAMETER

• Model BCL1006X BCL1309X BCL1610X BCL1812X

• Working area 1000X600mm 1300X900mm 1600X1000mm 1800X1200mm

• Laser Power 80W-100W-120W-150-240 W

• Laser Type Co2 Laser Tube Glass or Metal

• Cooling Type: Water Cooling

• Engraving Speed ​​0-60000mm/min

• Cutting Speed ​​0-40000mm/min

• Laser Output Control 0-100% Adjusted by Software.

• Min. Carving Size Chinese 2.0mm 2.0mm, English Letters 1.0mm 1.00mm

• Highest Scanning Sensitivity 4,000 DPI

• Location Detection Accuracy +0.01 mm

• Software Control DSP Control System

• Supported Graphics Format DST PLT BMP DXF DWG AI LAS, etc

• Compatible Software CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.

• Color Separation Yes

• Driving system High precision 3 phase stepper motor

• Auxiliary Equipment Exhaust Fan and Air Exhaust Pipe

• Power supply AC110V 220V+10%, 50HZ 60HZ

• Working environment Temperature: 0 45C, Humidity: 5 95% No water condensation

• Applicable industries

• Fabric, leather, toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and decoration decoration, packaging and printing, paper

• Applied to product industries.

• Applicable materials

• Metallic such as acrylic, color plates, ABS sheet, rubber, plastic, cloth toys, leather, wool, crystal, glass, ceramic tile, jade, bamboo products, wooden products
