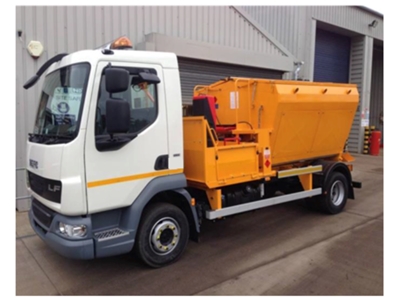

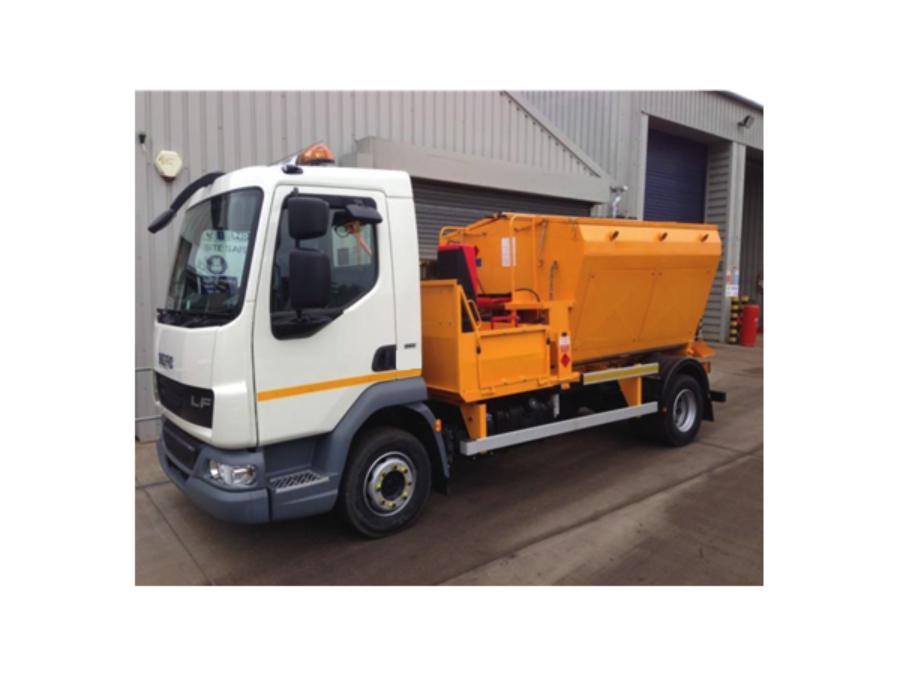

12 M³ Crack Filling Patch Machine
Rotek Global Makina RTK - 12HB Crack Filling Patch Machine is a high-performance, vehicle-mounted solution designed to handle large-scale road repair and maintenance projects. This robust machine features an insulated, heated, V-shaped bunker, which ensures that materials such as emulsion and bitumen are kept at the perfect temperature for optimal performance. The hydraulic lid on the bunker provides easy access for loading and unloading materials, making the machine both practical and user-friendly.
Equipped with a hydraulic screw conveyor system, the RTK - 12HB ensures continuous and trouble-free material feeding during operation. The conveyor’s speed is easily adjustable via a planetary reducer, allowing for precise control over the material flow. This is especially useful in large-scale repairs, where consistent and efficient material delivery is essential for quality results.
The RTK - 12HB is designed for long-lasting and efficient operation, with hydraulic equipment selected to meet the demands of tough working conditions. Its open hydraulic circuit ensures smooth and reliable performance, while the hydraulic oil tank provides ample capacity to keep the system running effectively throughout the day.
The machine is equipped with an emulsion and bitumen spraying system featuring a 1’’ gear pump, which guarantees precise and consistent application of materials. Whether repairing cracks or filling road surface imperfections, the RTK - 12HB ensures an even distribution of materials for a durable, long-lasting road surface. Additionally, the emulsion tank is electrically heated to prevent the material from solidifying, ensuring that the spraying system performs optimally even in colder temperatures.
For ease of operation, the RTK - 12HB comes with a control panel located in the cabin, as well as a rear control panel and hydraulic block levers that allow operators to manage the machine's functions from various positions. These multiple control options make it easy for the operator to adjust the flow of material and monitor the machine's performance in real time. The intuitive design of these controls allows for quick setup and operation, even for new operators.
The RTK - 12HB features a 12 m³ bunker, making it suitable for large-scale projects where a larger material capacity is needed. This large capacity ensures that the machine can complete bigger jobs without the need for frequent refilling, improving efficiency and reducing downtime. The unit is designed to be mounted on an 8X2 vehicle, offering superior stability and load-bearing capacity for heavy-duty applications.
Additionally, the machine includes several optional features to enhance its versatility. A compactor can be added to the machine to ensure that the applied materials are well-compacted, improving the longevity and effectiveness of the repairs. Furthermore, an optional hydraulic breaker can be included for more intensive surface preparation, such as breaking up old or damaged materials before filling the cracks.
The RTK - 12HB is also equipped with a water tank for cleaning and a cleaning tank, both essential for maintaining the machine’s functionality and ensuring smooth operation throughout the day. The compactor cabinet allows for easy storage of compaction tools, adding convenience to the maintenance process.
TECHNICAL SPECIFICATIONS
DESCRIPTION
|
RTK - 5HB
|
RTK - 8HB
|
RTK - 12HB
|
Vehicle Type
|
4X2
|
6X2 - 6X4
|
8X2
|
Bunker Capacity (m³)
|
5
|
8
|
12
|
Drive Type
|
Vehicle PTO
|
Vehicle PTO
|
Vehicle PTO
|
Hydraulic System
|
Open Hydraulic Circuit
|
Open Hydraulic Circuit
|
Open Hydraulic Circuit
|
Hydraulic Oil Tank (liters)
|
120
|
120
|
120
|
Emulsion Tank (liters)
|
160
|
160
|
160
|
Water Tank (liters)
|
100
|
100
|
100
|
Cleaning Tank (liters)
|
30
|
30
|
30
|
Bunker Heating
|
Electric / Burner
|
Electric / Burner
|
Electric / Burner
|
Emulsion Tank Heating
|
Electric
|
Electric
|
Electric
|
Control
|
Manual
|
Manual
|
Manual
|
1'' Emulsion Pump
|
✓
|
✓
|
✓
|
Compactor Cabinet
|
✓
|
✓
|
✓
|
Compactor
|
Optional
|
Optional
|
Optional
|
Hydraulic Breaker
|
Optional
|
Optional
|
Opti
|
